Mapes Insulated Back Pans
Single Source Spandrel Solutions: Simplifying Projects That Require Back Pans and Wool Insulation
SINGLE SOURCE SPANDREL SOLUTIONS
Mapes Panels, your UNRIVALED infill panel manufacturer, is NOW OFFERING Insulated Back Pans and Shadow Box panels. Stand-alone or as a compliment to your other spandrel products, Mapes Back Pans come pre-assembled, ready for quick installation. Not only do Mapes Insulated Back Pans reduce labor and time on-site, but they will also streamline how your spandrel products are sourced. Project managers appreciate the ease of ordering Mapes Infill panels and Back Pans on the same PO and getting them delivered together. Just like our trusted line of infill panels, Back Pans & Shadow Box panels are custom built to your specifications and can integrate into most UL & Intertek approved Fire-stopping systems.
Key Benefits
- Precisely sized to fit your openings
- Insulation is pre-loaded and secured in place with weld pins (or other)
- Mineral wool insulation for fire-stopping systems and NFPA 285 compliance
- Fully customizable to meet project requirements for pan depth, installation method, insulation type & thickness, and any other requirements you may have
- Standard back pans have pre-drilled holes for simple installation
- Can be integrated to use with UL or Intertek approved fire-stopping systems
Applications
- Pre-assembled units streamline installation
- Improved thermal performance
- Sound dampening
- Increase profits by reducing time on-site as well as eliminating time spent fabricating
- Single source simplifies material ordering and overall project management
- Save material costs with turn-key spandrel sourcing
- Can be paired with any Mapes Panel
Industries
-
Commercial Real Estate
-
Multi-Family Residential
-
Office Buildings
-
Hospitality
-
Healthcare
-
Education
-
Government & Institutional Buildings
-
Mixed-Use Developments
Frequently Asked Questions
What are Mapes Back Pans?

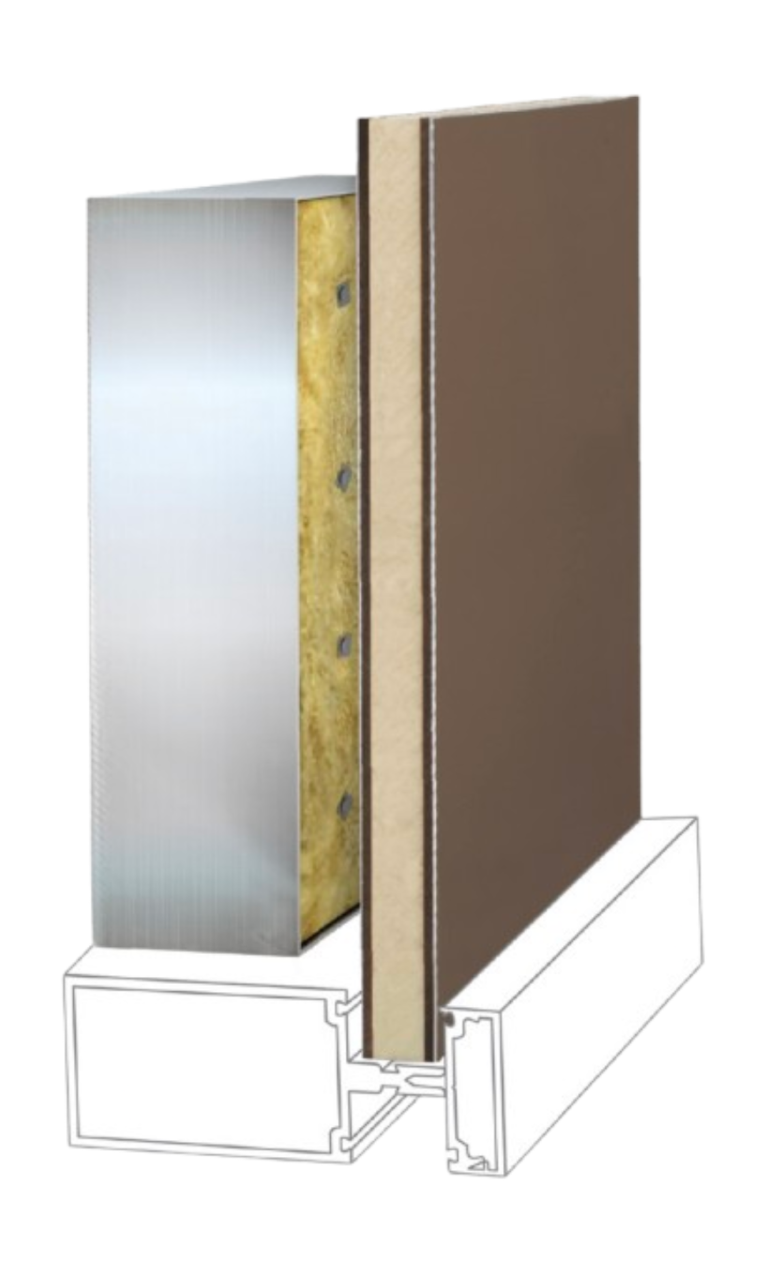

Mapes Back Pans are pre-assembled, custom-built units designed to simplify the installation of spandrel and infill systems. Consisting of a precisely sized metal pan pre-loaded with mineral wool insulation and featuring pre-drilled holes, these units offer a ready-to-install solution for modern building envelopes.
Are Mapes Back Pans customizable?
Yes. Mapes Back Pans are fully customizable to meet project requirements for pan depth, installation method, and insulation thickness. Additionally, Back Pans and Shadow Box panels can integrate into most UL & Intertek approved fire-stopping systems and can be paired with any Mapes infill panel.
How do Mapes Insulated Back Pans improve project efficiency?
These units increase project profitability by significantly reducing time spent on-site and eliminating the need for field fabrication. As a single-source, turn-key spandrel solution, they simplify material ordering and project management while delivering high-performance benefits like improved thermal insulation and sound dampening.
What kind of insulation is used in these back pans?
The pans utilize mineral wool insulation, which is pre-loaded and secured in place with weld pins or other fasteners. This makes them suitable for fire-stopping systems and NFPA 285 compliance.
