MapeSpan Spandrel Panel

Insulated Spandrel Glass Panels: Spandrel Glass Exterior, Complete Single Source Glazing Solution

INSULATED SPANDREL GLASS PANELS

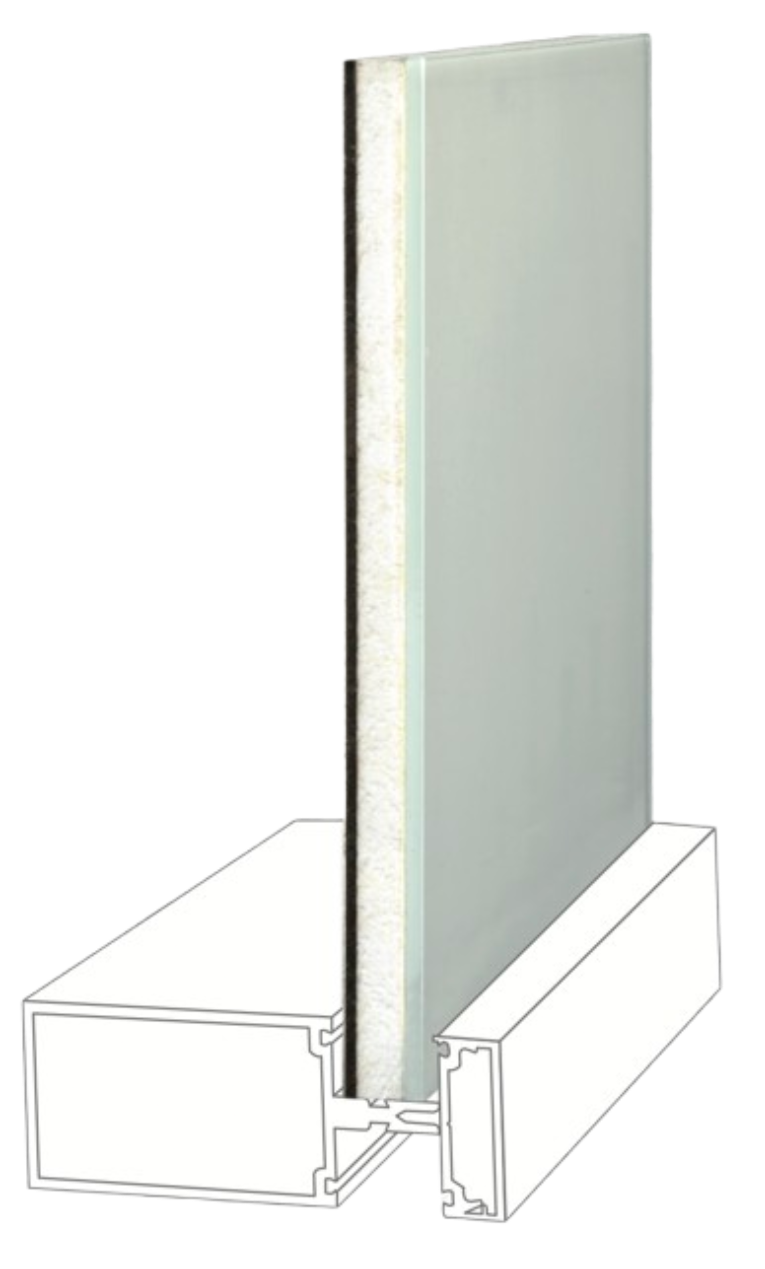

MapeSpan panels are an insulated spandrel glass panel which includes 1/4” tempered spandrel glass laminated directly to an insulating core, interior substrate and interior skin. This unique single source solution provides a low cost, single source glazing option for curtain wall, spandrel and window applications. The interior of the MapeSpan panel can be factory finished to complement any design requirement, including Kynar, Anodized and Baked Enamel. The unitized nature of MapeSpan also reduces field labor and can eliminate the need for a separate insulated backpan.

Key Benefits

Tempered spandrel glass exterior can match the other glass on your project
Complete glazing solution for exterior and interior
Available up to 6” thick
High R-Value
Lower installation/Labor costs
Eliminates need for add’l backpans/insulation

Applications

Curtain Walls
Storefronts
Windows
Spandrel Areas
Transoms
Sidelights

Technical Data

The images below detail the infill panel layer assembly and standard color availability.

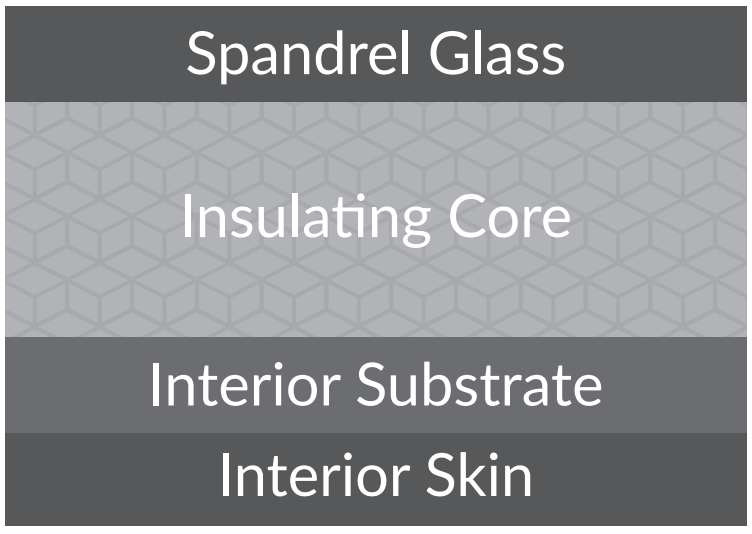

Typical Cross Section

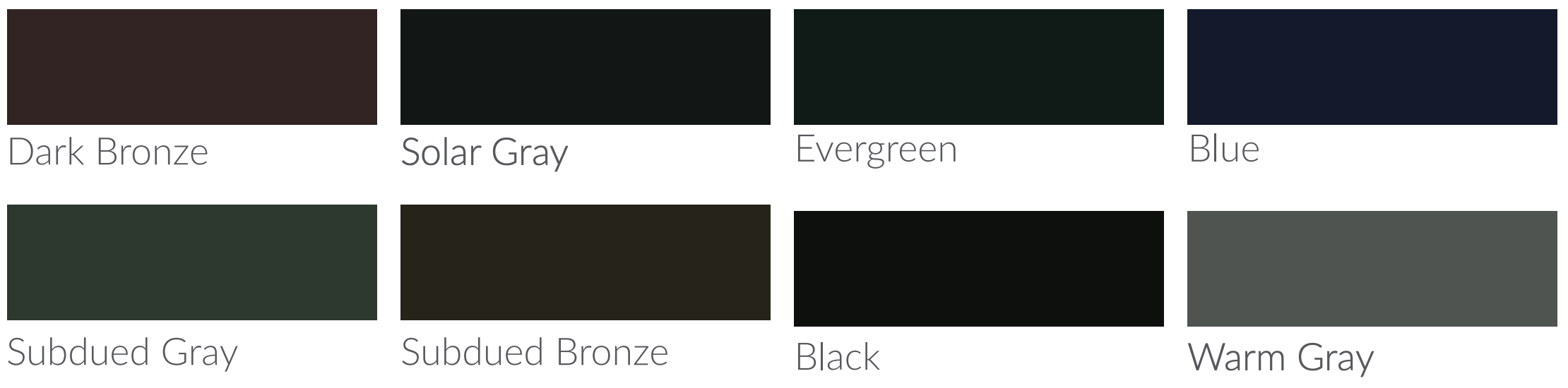

Standard Colors

Custom glass tint and custom ceramic colors available, please consult factory for design limitations.
Color variation due to printing process, consult factory for sample.
