Seamless Structurally Glazed Panels: Perfect for a Variety of Structurally Glazed Conditions

REQUEST A QUOTE

Seamless Structurally Glazed Panels

Mapes-SSG panels are the perfect solution when your project requires panels that can be installed in a variety of structurally glazed conditions. All Mapes-SSG panels are custom fabricated to suit the performance and aesthetic requirements of your project. Most other Mapes product lines can be adapted for use in SSG conditions as well, giving you a wide range of options to meet your needs.

Key Benefits

Available in all architectural finishes
Thicknesses up to 6-inches
Up to 25-year lamination warranty
Can be applied to most other Mapes panel lines, to meet most aesthetic and performance needs of your project.

Applications

Four-sided structural glazing
Butt Joints
Challenging corner conditions
Any combinations of these applications

Industries

Commercial Real Estate
Office Buildings
Hospitality
Healthcare
Education
Government & Institutional Buildings
Mixed-Use Developments
Renovation and Retrofit Projects

Plan your next project with confidence

Request a Quote

Frequently Asked Questions

What is the difference between Mapes-SSG panels and Mapes Veneer & Glazing Panels?

Mapes-SSG panels are engineered for structural silicone glazing, creating a seamless appearance and making them well-suited for applications with unsupported edges and butt joints. Mapes Veneer & Glazing panels function as traditional glass infill replacements and are commonly used in standard captured glazing systems. SSG panels provide a flush, modern appearance and are custom-fabricated up to 6 inches thick.

What is four-sided structural glazing compared to wrapped-edge glazing for Mapes-SSG panels?

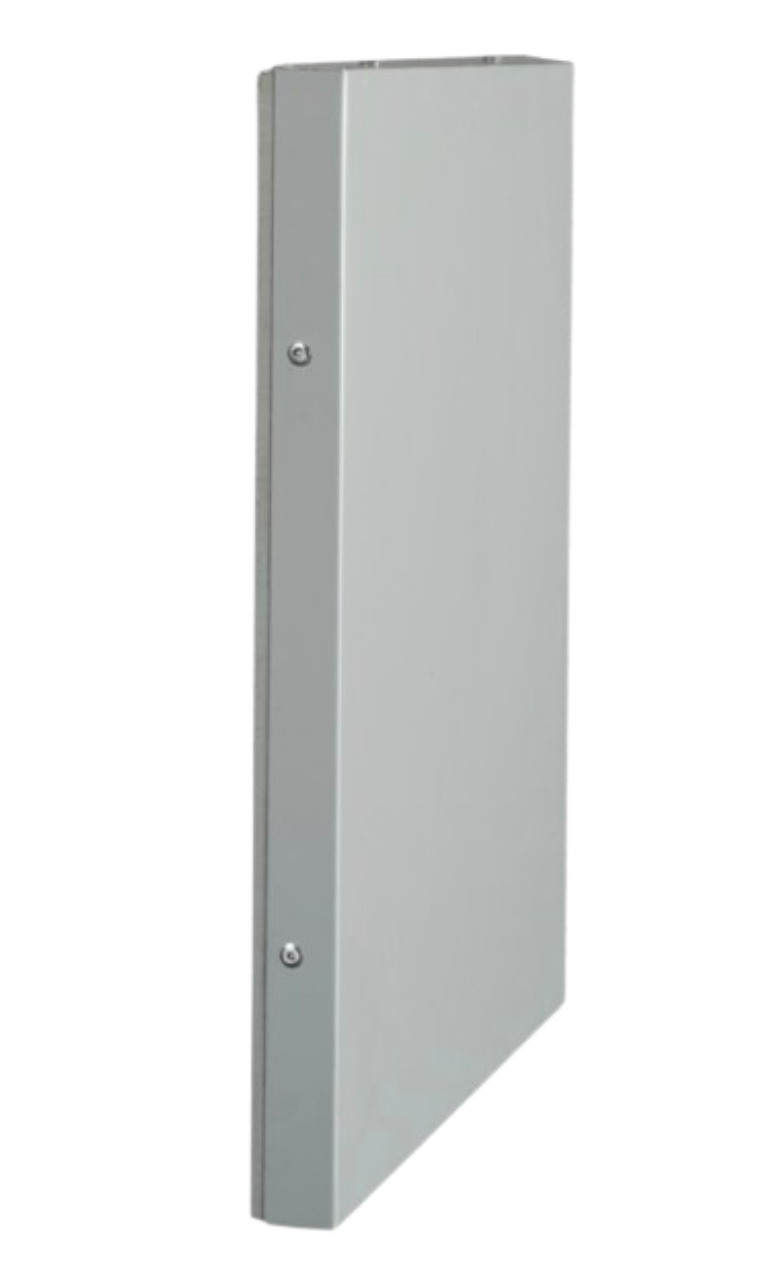

In four-sided structural glazing, the panel is held entirely by structural silicone or toggles without being tucked into a frame, and all four edges are finished with a sealed “pan-in-pan” rivet design. In wrapped-edge glazing, the panel is captured within the system’s glazing pocket on one or more sides, and the edges are finished by folding the exterior skin around to the back of the panel.

What customizations are available with Mapes-SSG panels?

Mapes-SSG panels offer extensive customization to suit specific performance and aesthetic requirements, including thicknesses up to 6 inches and availability in all architectural finishes. Most other Mapes product lines can also be adapted for use in SSG conditions to meet the unique needs of a project.

Why are Mapes-SSG panels used for challenging corner conditions?

Mapes-SSG panels are ideal for challenging corner conditions because they are custom-fabricated to suit the exact geometries of a project. They provide a seamless integration for structural glazing and butt-joint applications, support thicknesses up to 6 inches and feature a lamination warranty up to 25 years.
